Active Line Array Speakers 18inch Sub Woofer , Column Bluetooth Speaker Music Instrument

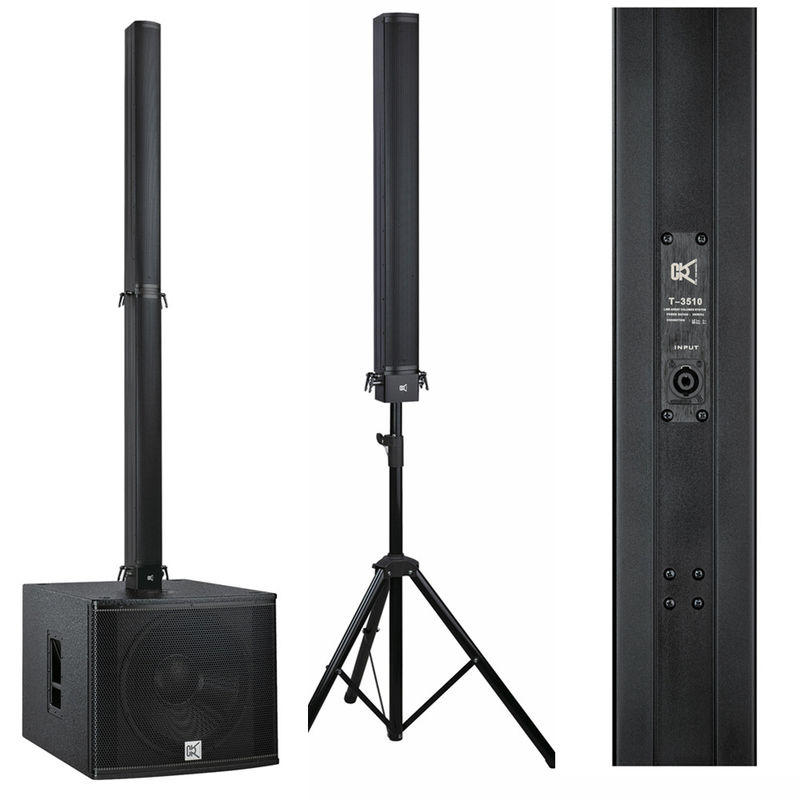

Large Image : Active Line Array Speakers 18inch Sub Woofer , Column Bluetooth Speaker Music Instrument

Product Details:

Place of Origin:	Guangzhou China
Brand Name:	CVR
Certification:	CE,RoHS
Model Number:	T-3510&T--18P

Payment & Shipping Terms:

Minimum Order Quantity:	2 Pieces
Price:	Negotiation
Packaging Details:	Carton Box & Flight Case
Delivery Time:	5--8 Work Days
Payment Terms:	D/A, D/P, L/C, Western Union
Supply Ability:	1000 Pieces Per Month

Detailed Product Description

Model Number::	T-3510&T--18P	Type:	18 Inch Neodymium Woofers
Brand Name:	CVR	Frequency Response::	130Hz -20kHz ± 3dB
Enclosure:	Aluminum Plywood(T-18P)	Dispersion Pattern:	110º H×9º V
Finish:	Black Paint
High Light:	carvin column array , acoustic sound systems

Active Line Array Speakers 18inch Sub Woofer , Column Bluetooth Speaker Music Instrument

DESCRIPTION and APPLICATION

The T-3510 is a line array column system comprised of ten 3.5"neodymium magnet transducers housed in an elegant and sturdy stainless steel chassis. The ten closely spaced cone drivers provide true line array characteristics-phase coherence, low distortion and focused listening in both the near field, and at a distance from the speaker.
A variety of rigging accessories provides many linking and hanging options for the T-3510 and T-18P to be combined in vertical line array configurations to satisfy many different venue requirements during temporary events and for permanent installations. It is particularly suitable for Theatre, Club, Churches Front fill and under-balcony fill Portable and installed AV systems Stage and AV studio monitoring.

T-18P is a 18"subwoofer, specifically designed to reproduce deep bass frequencies with maximum efficiency, speed and impact. The T-18P features a highly efficient power amp module and incorporate DSP. It is also ideal for reproducing the concentrated energy of contemporary music environments such as discos, clubs and outdoor shows where extreme level of bass is required.

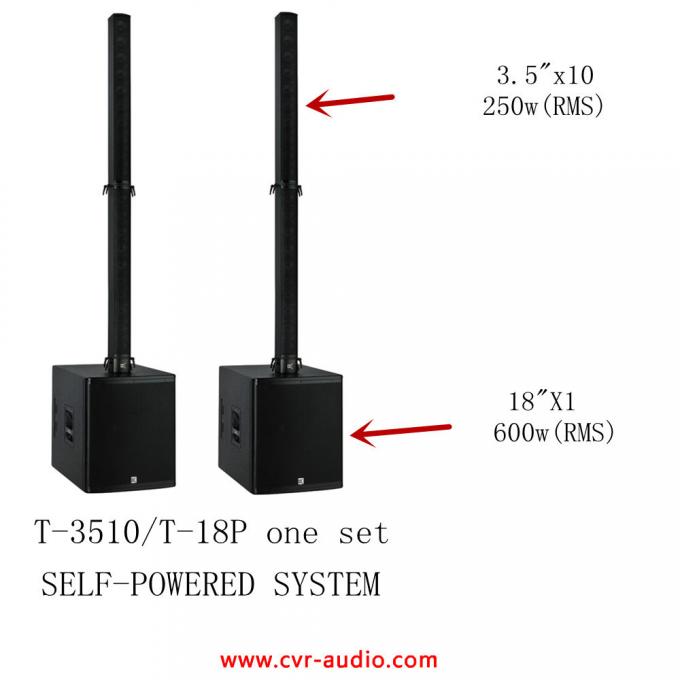

Model	T-3510/T-18P
Type	Line Array Column system
Type	Sub-bass system(T-18P)
Frequency Response	130Hz -20kHz ± 3dB
Frequency Response	37Hz-120Hz ± 3dB(T-18P)
Power handling	250W(RMS)500W(PEAK)
Power handling	600W(RMS)1200W(PEAK)(T-18P)
Sensitivity	96dB(1W-1M)
Sensitivity	109dB(1W-1M)(T-18P)
Max-S.P.L	120dB(PEAK/1M)
Max-S.P.L	137dB(PEAK/1M)(T-18P)
LF section	10×3.5"(90mm)
	20mm(0.8in)coil
	18"(460mm) woofer(T-18P)
	100mm(4in)coil
Nominal impedance	8 ohm
Nominal impedance	8 ohm(T-18P)
Output section	2-channel
Dispersion pattern	110°H×10°V
Speaker cables	LF 1(+)1(-) HF 2(+)2(-)
Speaker cables
Input connectors	2×NL4MP speakon
Dimensions	953×102×115mm(W×H×D)
Dimensions	510×590×710mm(W×H×D)(T-18P)
Package dimensions	1020×170×185mm/0.03cbm
Package dimensions	580×660×780mm/0.3cbm(T-18P)
Enclosure	Aluminum
Enclosure	Plywood(T-18P)
Netweight	6.5g/(T-3510) 45kg/(T-18P)
Gross weight	8/(T-3510) 48kg/(T-18P)

CVR PRO-AUDIO,LET YOUR EARS BE THE JUDGE !

Guangzhou CVR Pro Audio Co., Ltd is specialized in researching, developing and manufacturing high quality pro audio equipment.Boasting talented professional employees and leading technology, we manufacture and supply a compreh ensive range of professional equipment including line array system, proloudspeaker, subwoofer, minitor speaker and power amplifier. CVR pro audio products have been far sales to over 100 countries abroad,enjoying high reputations and popularitys.Our own modern industrial factory occupies over 5000 square meters, equiped with advanced processing lines and sound online testing systems. R&D department, production, QA, engineering, overseas sales department, domestic sales department and aftersales service are all running well under strict management constructive guidelines.

Active Line Array Speakers 18inch Sub Woofer , Column Bluetooth Speaker Music Instrument

To get the best goods with least money is not only customers favorites,but also CVR's target.

Quality Wood Enlosure: Birch Plywood and Plywood.
Detailed cutting and Design: Proffessional design for driver,frequency divider,tweeter, horn and cabinet.
Environment protection spray-paint: nontoxic water paint which is environment protected and werable.
CE&RoHS certificate: for all products
Strictly test before delivery: All products are under the examination of our engineer team before dilivery.
Strong packing: Quality carton boxs with firm belt and flight cases are required.
Fast lead time: Sample order in stock and normally within two weeks for bulk production.
Good After-sale service: All products have one year warranty and lifetime follow-up service.Parts will be free from maintenance within warranty period. Any inquiries will be replied within 24 hours.

Features

--Detachable front dolly panel
--High fidelity, durability and light weight
--Three-way large format line array module
--15loudspeaker with neodymium magnet
--3loudspeakers with neodymium magnetic ine array
--Captive figging system intergrated in the cabinet design with good quality birch plywood
