Detailed Product Description
| Model Number:: |
CV-6.5&CV-112B |
Type: |
Array Column System Sub Bass (cv-112b ) |
| Frequency Response: |
80Hz -20kHz ± 3dB |
Power:: |
600W(RMS)1200W(PEAK) |
| Output Section: |
2-channel |
Dispersion Pattern: |
90° |
| Finish: |
Black Paint |
Input Connectors: |
2×NL4MP Speakon |
| Package Dimensions: |
455×450×545mm/0.11cbm(CV-112B) |
|
|
| High Light: |
high power audio amplifier, music system speakers |

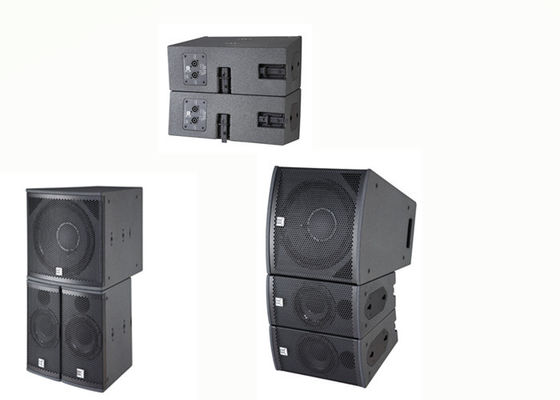

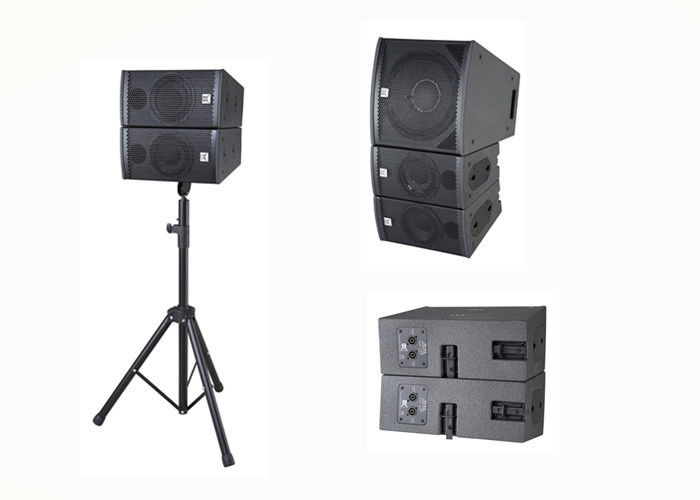

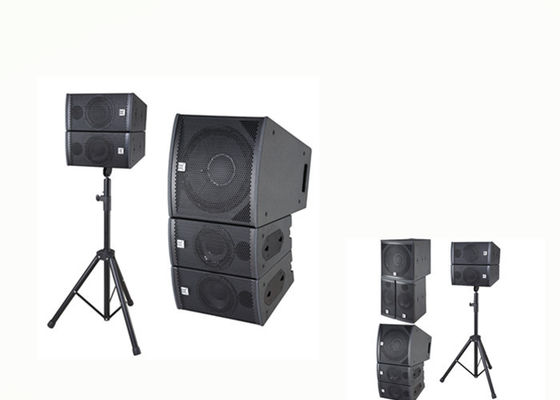

Mini Karaoke Speakers Mixer 2-Way Line Array Sound System For Bar
DESCRIPTION and APPLICATION:

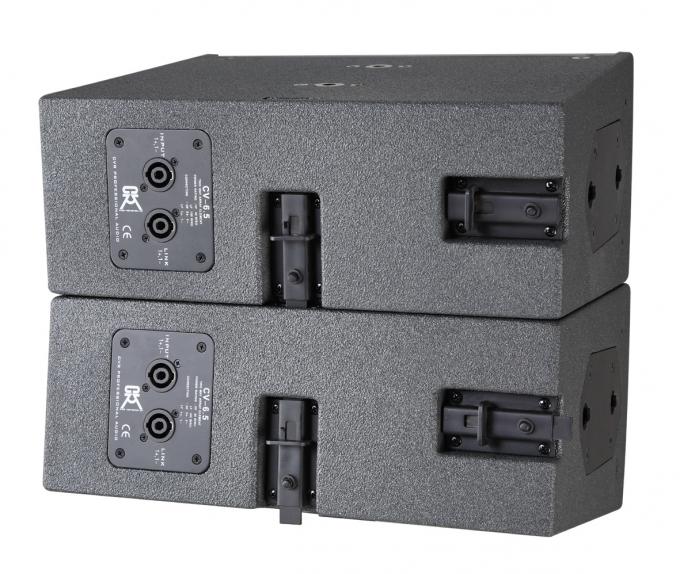

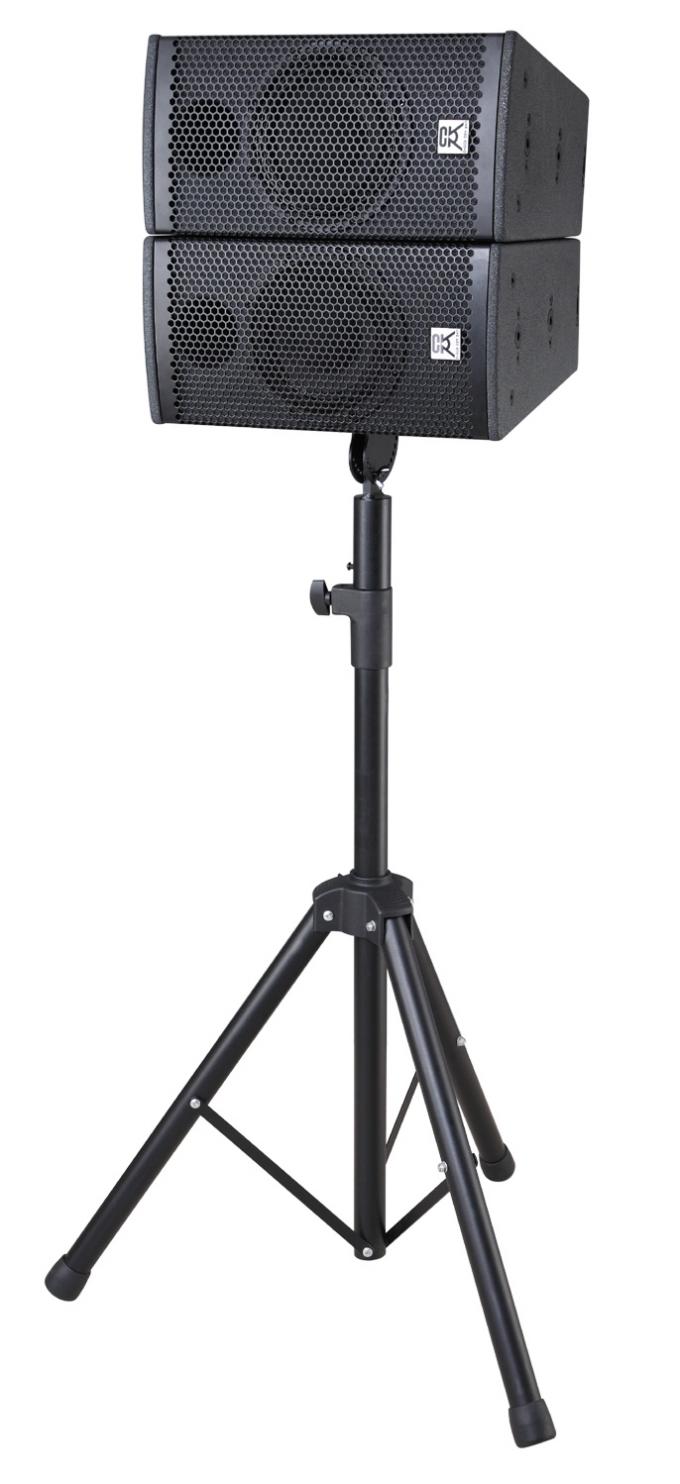

CV-6.5 is a coxial array system which is made of a 6.5"woofer, a 1.4" titanium neodymium compression driver. a CV-6.5 will integrate seamlessly with CV-112 array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. CV-6.5 is veryversatile and scalable for a wide range of applications in touring performance,
corporate and fixed installation fields. CV-112B is a dedicated high performance sub-bass system designed to augment the low frequency output of CV-6.5.
CV-112B is a sub-bass enclosure which must be flown with CV-6.5. So its physical dimensions are identical to the CV-6.5 and it is equipped with the same proprietary rigging system. It features with a 12"woofer with magnet structure and suspensions engineered for maximum linear excursion.
| Model |
CV-6.5&CV-112B
|
| Type |
Array Column system |
| Sub-bass system(CV-112B) |
| Frequency Response |
80Hz -20kHz ± 3dB
|
| 42Hz-150Hz ± 3dB(CV-112B) |
| Power handling |
LF 150W(RMS)300W(PEAK) |
| HF 30W(RMS)60W(PEAK) |
| 400W(RMS)800W(PEAK)(CV-112B) |
| Sensitivity |
LF 95dB(1W-1M) |
| HF 108dB(1W-1M) |
| 106dB(1W-1M)(CV-112B) |
| Max-S.P.L |
LF 117dB(PEAK/1M)
|
|
HF 120dB(PEAK/1M)
|
| 132dB(PEAK/1M)(CV-112B) |
| LF section |
6.5"(170mm)woofer |
| 50mm(2in)coil |
| 12"(310mm) woofer(CV-112B) |
| 100mm(4in)coil |
| Nominal impedance |
8 ohm |
| 8 ohm(CV-112B) |
| LF section |
1×1.4"neodymium |
| compression driver with 34mm |
| Output section |
2-channel |
| Dispersion pattern |
90° |
| Finish |
Black paint |
| Speaker cables |
1(+)1(-)Built in crossover |
| 1(+)1(-)(CV-112B) |
| Input connectors |
2×NL4MP speakon |
| Recommend crossover |
120Hz-20KHz |
| 45Hz-120Hz(CV-112B) |
| Dimensions |
190×380×315mm(W×H×D) |
| 384×380×476mm(W×H×D)(CV-112B) |
| Package dimensions |
260×450×385mm/0.05cbm |
| 455×450×545mm/0.11cbm(CV-112B) |
| Enclosure |
Plywood |
| Netweight |
10kg(CV-6.5) / 21kg (CV-112B) |
| Gross weight |
12kg(CV-6.5) / 24kg (CV-112B) |
CVR PRO-AUDIO,LET YOUR EARS BE THE JUDGE !
Guangzhou CVR Pro Audio Co., Ltd is specialized in researching, developing and manufacturing high quality pro audio equipment.Boasting talented professional employees and leading technology, we manufacture and supply a compreh ensive range of professional equipment including line array system, proloudspeaker, subwoofer, minitor speaker and power amplifier. CVR pro audio products have been far sales to over 100 countries abroad,enjoying high reputations and popularitys.Our own modern industrial factory occupies over 5000 square meters, equiped with advanced processing lines and sound online testing systems. R&D department, production, QA, engineering, overseas sales department, domestic sales department and aftersales service are all running well under strict management constructive guidelines.
Brand Promises
To get the best goods with least money is not only customers favorites,but also CVR's target.
- Quality Wood Enlosure: Birch Plywood and Plywood.
- Detailed cutting and Design: Proffessional design for driver,frequency divider,tweeter, horn and cabinet.
- Environment protection spray-paint: nontoxic water paint which is environment protected and werable.
- CE&RoHS certificate: for all products
- Strictly test before delivery: All products are under the examination of our engineer team before dilivery.
- Strong packing: Quality carton boxs with firm belt and flight cases are required.
- Fast lead time: Sample order in stock and normally within two weeks for bulk production.
- Good After-sale service: All products have one year warranty and lifetime follow-up service.Parts will be free from maintenance within warranty period. Any inquiries will be replied within 24 hours.
Specifications
- 1.aluminum line array delay tower
- 2.heavy load but lightweight
- 3.durable and stable
- 4.SGS and CE approved
- 5.OEM ,ODM
Package and Delivery:
- --Carton or flycase
- --At buyers' option
