PRO-480 Digital Sound Processor , Digital Karaoke Processor AC 110V / 220V

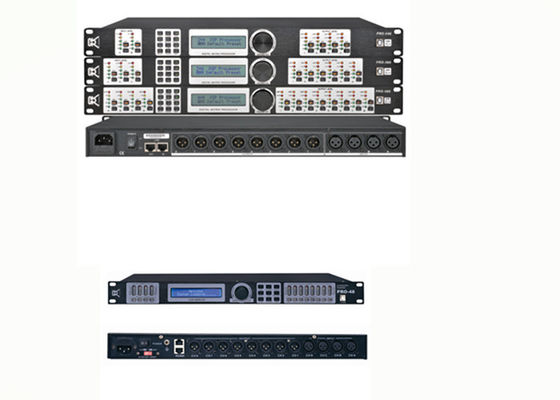

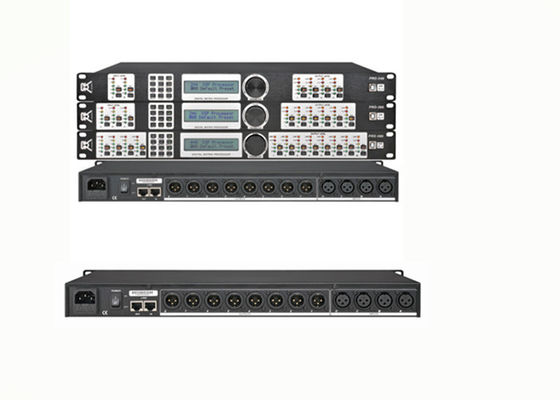

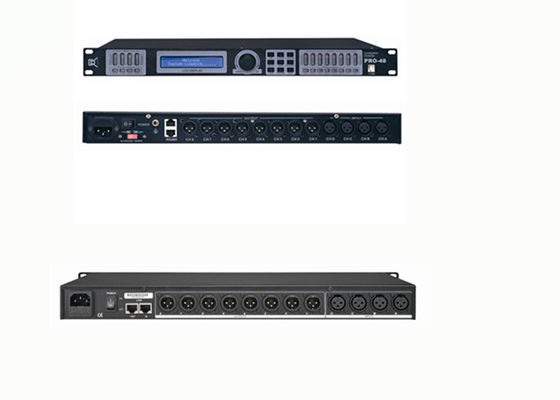

Large Image : PRO-480 Digital Sound Processor , Digital Karaoke Processor AC 110V / 220V

Product Details:

Place of Origin:	Guangzhou China
Brand Name:	CVR
Certification:	CE,RoHS
Model Number:	pro-480

Payment & Shipping Terms:

Minimum Order Quantity:	2 Pieces
Price:	Negotiation
Packaging Details:	Carton Box & Flight Case
Delivery Time:	5--8 Work Days
Payment Terms:	D/A, D/P, L/C, Western Union
Supply Ability:	1000 Pieces Per Month

Detailed Product Description

Model Number::	Pro-480	Type:	4 In 8 Out
Brand Name:	CVR	Power Supply:	AC 110V/220V 50Hz/60Hz
Frequency Response:	20Hz-20KHz	Net Weight:	5 Kg
High Light:	Digital audio processor , audio video processor

PRO-480 Digital Sound Processor , Digital Karaoke Processor AC 110V / 220V

DESCRIPTION and APPLICATION

24-bit,48kHz sampling rate,∑-△ AD / DA convertor,32 bits DSP chip.
    Input processing includes Gain, Mute, Noise gate, high-cut, low-cut, 8 parameter EQ, Phase, Delay and so on (PRO-480 without Hi-cut Low-cut And PEQ)
    Output processing includes crossover , 5 parameter EQ,Gain, Mute, compressor/Limiter, Phase, Delay and so on
    Every input and output can do matrix assign flexibly
    Adjustable PEQ frequency, Gain and bandwidth; we can choose style: PEAK,H-SHELVE,L-SHELVE
    We can choose the style of all High-cut , Low-cut filter and Distributor unit: Butterworth,Linkwitz-Riley,Bessel;Choice slope is from -6dB/Oct to -48dB/Oct
    Adjustable compressor / limiter threshold, ratio, attached time and release time
    Adjustable threshold, attached time, release time of all noise gate
    All delay module's delay time can reach over 682ms
    Parameter setting of every channel can copy freely
    Interput signal tester,output can choose pink noise,white noise , 20Hz-20kHz adjustable sine wave and adjustable signal range
    2×20   word   LCD , light and key-press incorporate design, unique one key-press process method, bring the users with convenient and rapid operating
    32 user preset; status and every preset can save and adjust separately, with code protecting function
    With PC , we can do remote control by USB and RS232 connector
    256 units linkable by RS485, and do remote link controlling by center-control equipment

Model	PRO-240	PRO-360	PRO-480
Configuration	2 in 4 out	3 in 6 out	4 in 8 out
Power Supply	AC 110V/220V 50Hz/60Hz	AC 110V/220V 50Hz/60Hz	AC 110V/220V 50Hz/60Hz
Product Dimension	482×232×44mm(HxWxD)	482×232×44mm(HxWxD)	482×232×44mm(HxWxD)
Shipping Dimension	605×310×110mm (HxWxD)	605×310×110mm (HxWxD)	605×310×110mm (HxWxD)
Net Weight	4.1kg	4.1kg	4.1kg
Gross Weight	5kg	5kg	5kg
