Detailed Product Description
| Model Number:: |
Q-215 |
Type: |
Two-way,full Range System |
| Frequency Response: |
48Hz －18kHz ± 3dB |
Power:: |
900W(RMS)1800W(PEAK) |
| Output Section: |
2-channel |
Dispersion Pattern: |
80° |
| Finish: |
Black Paint |
Input Connectors: |
2×NL4MP Speakon |
| High Light: |
conference room sound system, conference room audio system |

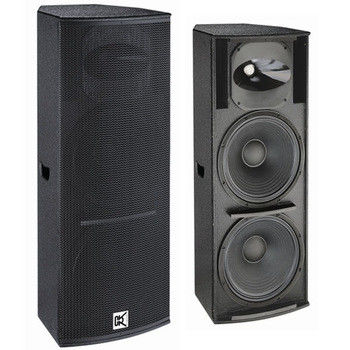

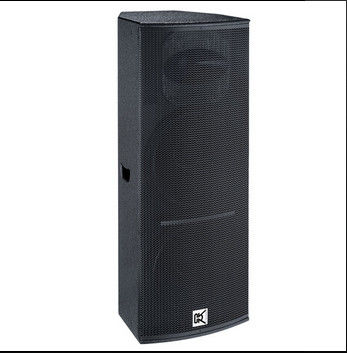

Powerful 15 Inch Conference Room Sound System For Outdoor Wedding Party
DESCRIPTION and APPLICATION:
Q-215 is a 2-way, full range loudspeaker system. Its features include two high efficient 15＂ woofers and one 2.5＂ titanium compression driver housed in a compact plywood enclosure, combining smooth dynamic full frequency performance with high power driver units. It is particularly suitable for clubs, theaters, halls, discos, conferences, etc.
| Model |
Q-215 |
| Type |
Two-way,full range system |
| Frequency Response |
48Hz －18kHz ± 3dB |
| Power handling |
900W(RMS)1800W(PEAK) |
| Sensitivity |
101dB(1W@1M) |
| Max@S.P.L |
130dB(PEAK/1M) |
| LF section |
2×15"(380mm) woofer |
| 75mm(3in)coil |
| HF section |
2.5＂compression driver with |
| 63mm titanium diaphragm |
| Nominal impedance |
4 ohm |
| Output section |
2-channel |
| Dispersion pattern |
80°H×50°V |
| Finish |
black paint |
| Speaker cables |
1(+)1(-) |
| Input connectors |
2×NL4MP speakon |
| Dimensions |
432×1120×496mm(W×H×D) |
| Package dimensions |
500×1190×565mm/0.34cbm |
| Enclosure |
plywood |
| Netweight |
44kg |
| Gross weight |
47kg |
CVR PRO-AUDIO,LET YOUR EARS BE THE JUDGE !
Guangzhou CVR Pro Audio Co., Ltd is specialized in researching, developing and manufacturing high quality pro audio equipment.Boasting talented professional employees and leading technology, we manufacture and supply a compreh ensive range of professional equipment including line array system, proloudspeaker, subwoofer, minitor speaker and power amplifier. CVR pro audio products have been far sales to over 100 countries abroad,enjoying high reputations and popularitys.Our own modern industrial factory occupies over 5000 square meters, equiped with advanced processing lines and sound online testing systems. R&D department, production, QA, engineering, overseas sales department, domestic sales department and aftersales service are all running well under strict management constructive guidelines.
Brand Promises
To get the best goods with least money is not only customers favorites,but also CVR's target.
- Quality Wood Enlosure: Birch Plywood and Plywood.
- Detailed cutting and Design: Proffessional design for driver,frequency divider,tweeter, horn and cabinet.
- Environment protection spray-paint: nontoxic water paint which is environment protected and werable.
- CE&RoHS certificate: for all products
- Strictly test before delivery: All products are under the examination of our engineer team before dilivery.
- Strong packing: Quality carton boxs with firm belt and flight cases are required.
- Fast lead time: Sample order in stock and normally within two weeks for bulk production.
- Good After-sale service: All products have one year warranty and lifetime follow-up service.Parts will be free from maintenance within warranty period. Any inquiries will be replied within 24 hours.
Specifications
- 1.aluminum line array delay tower
- 2.heavy load but lightweight
- 3.durable and stable
- 4.SGS and CE approved
- 5.OEM ,ODM
Package and Delivery:
- --Carton or flycase
- --At buyers' option
