Detailed Product Description
| Type: |
Two Way Full Range Line Array SPEAKER SYSTEM |
Size: |
8"x1 1.4"x1 |
| Power: |
400watt RMS |
Cabinet: |
Plywood Cabinet |
| Warranty: |
1 Year Free Warranty |
Brand: |
CVR PRO AUDIO |
| High Light: |
conference room sound system, conference room audio system |
Active Pro Audio Conference Room Speakers Full Range Line Array Speaker Box
active pro audio speaker professional full range line array speaker box
PRO SOUND PRO AUDIO DJ SPEAKER AUDIO SPEAKER LOUDSPEAKER SYSTEM

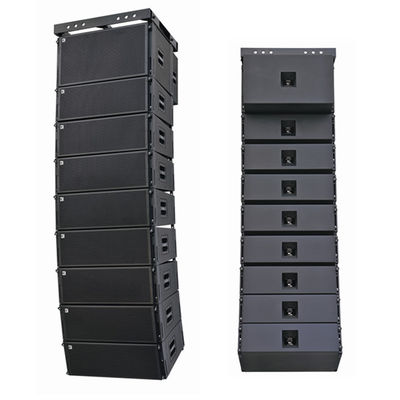

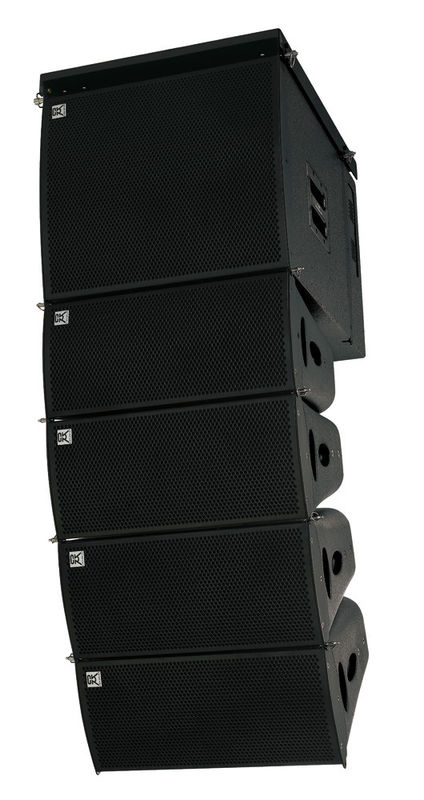

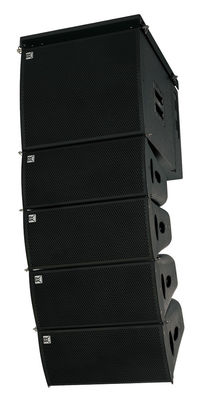

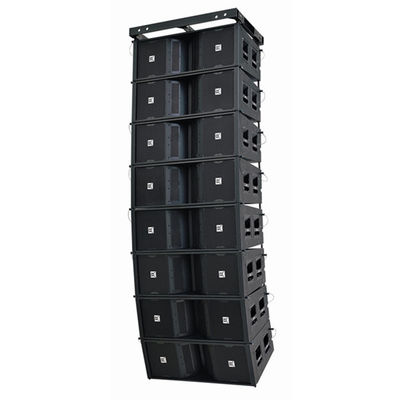

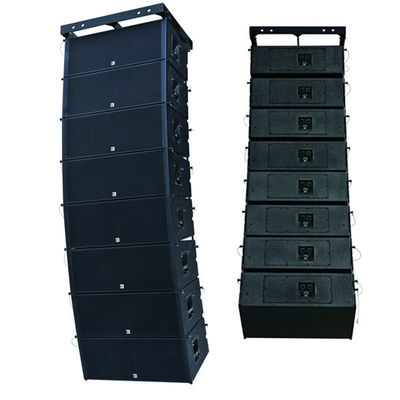

W-82C is a line array system which is made of a 8＂woofer, a 1.4＂titanium compression driver and high performance low distortion compression driver with innovative horn design of wave phase philosophy. Wherever low frequency extension is required, a W-82C will integrate seamlessly with W-15C or W-15CP line array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. W-82C is very versatile and scalable for a wide range of applications in touring performance, corporate and fixed installation fields.

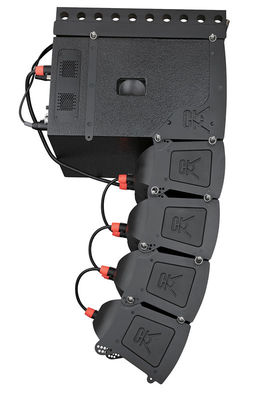

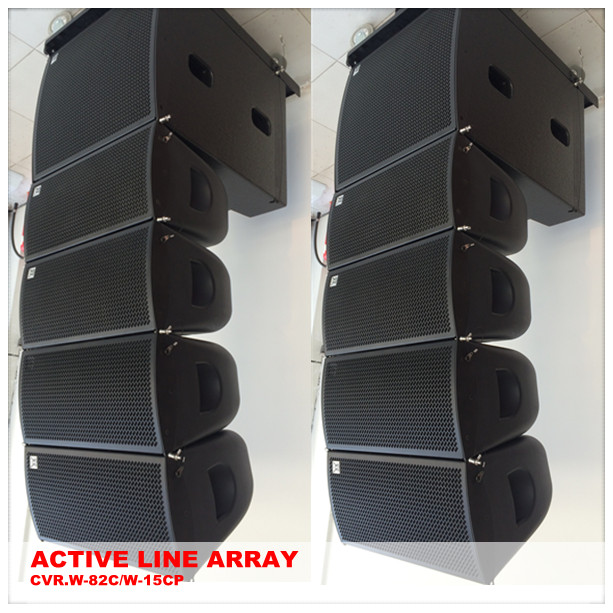

W-15C/W-15CP is a dedicated high performance sub-bass system designed to augment the low frequency output of W-82C. W-15C/W-15CP is a sub-bass enclosure which must be flown with W-82C. So its physical dimensions are identical to the W-82C and it is equipped with the same proprietary rigging system. It features with a 15＂woofer with magnet structure and suspensions engineered for maximum linear excursion. The W-15CP with Bluetooth features a highly efficient power amp module and incorporated DSP.
| Model |
W-82C ＆ W-15C/W-15CP(Active) |
| Type |
Line arry system |
| line arry sub-bass system(W-15C/W-15CP) |
| Frequency Response |
70Hz-20KHz±3dB |
| 40Hz-500Hz±3dB(W-15C/W-15CP) |
| Power handling |
250W(RMS)500W(PEAK) |
| 500W(RMS)1000W(PEAK)(W-15C/W15CP) |
| Power amp |
2X600W/4ohm + 1X900W/8ohm(W-15CP) |
| Amplifier type |
Switching power amp, class D circuit
|
| Other functions |
Bluetooth,DSP (W-15CP) |
| Sensitivity |
96dB(1W@1M) |
| 106dB(1W@1M)(W-15C/W15CP) |
| Max@S.P.L |
116dB(PEAK/1M) |
| 130dB(1W@1M)(W-15C/W15CP) |
| LF section |
1×8"(210mm)woofer 50mm(2in)coil |
15"(380mm)woofer 100mm(4in)coil
(W-15C/W-15CP) |
| HF section |
1×1.4"neodymium compression driver with34mm
titanium diaphragm |
| Nominal impedance |
8 ohm(W-82C)& 8 ohn (W-15C/W-15CP) |
| Output section |
2-channel |
| Dispersion pattern |
110º H×9º V |
| Surface finish |
Black paint |
| Array design |
Arrays of less than 3×W-82C will
provide poor dispersion control and are
neither recommended nor supported |
| Speaker cables |
1(+)1(-) Built in crossover |
| Rigging system |
Please refer to the W-82C user's
manual before any operation |
| Input connectors |
2×NL4MP speakon |
| Recommend crossover |
70Hz-20KHz |
| 40Hz-100Hz(W-15C/W-15CP) |
| Dimensions |
544×245×375mm(W×H×D) |
515×450×611mm(W×H×D)
(W-15C/W-15CP) |
| Package dimensions |
615×315×445mm/0.09cbm |
585×520×680mm/0.22cbm
(W-15C/W-15CP) |
| Enclosure |
HLPE(W-82C)/Plywood(W-15C/W-15CP) |
| Net weight |
12.5kg(W-82C)/34kg(W-15C)/40kg(W-15CP) |
| Gross weight |
14.5kg(W-82C)/37kg(W-15C)/43kg(W-15CP) |
If you are searching a reliable pro sound equipment supplier, CVR PRO-AUDIO is your best choice.
GUANGZHOU CVR PRO-AUDIO Co., Ltd was founded in 2005, We are one of the best manufacturer of PA speaker,indoor and outdoor line array speaker,subwoofer,floor monitor,karaoke speakers and power amplifier.We perform well in OEM & ODM projects, over 10 years' experience has been ensured our high quality and good price. Annual sales are approximately 10,000,000 USD, serving customers in more than 50 countries.
Certification: CE, ROHS
Address:Panyu,Guangzhou,China
for inquiries please call/email.
Competitive Advantage:
1. High quality speaker drivers, high power handling capability, good sound quality, flyware easy for operation, beautiful mesh grille design,highest standards of workmanship and quality control.

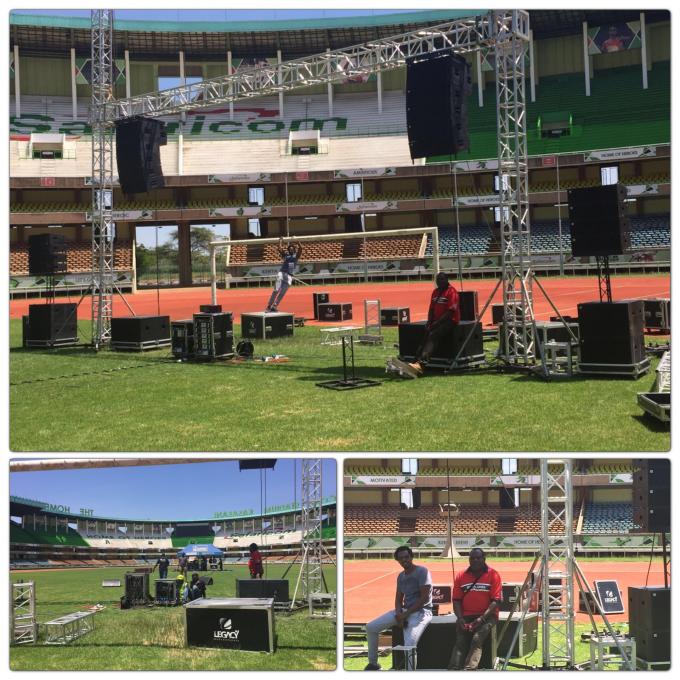

2. A good solution for all sizes of indoor/outdoor live event,and indoors applications like disco,
night club, conference,school auditorium, and places of worship;
3. To avoid damage and scratch during transport,according to customers’requirement,we can put the items in extra cost flight cases.
4. Established in 2005, CVR PRO AUDIO has forged a reputation as one of the nation's most experienced and reliable manufacturer of pro sound equipment.
